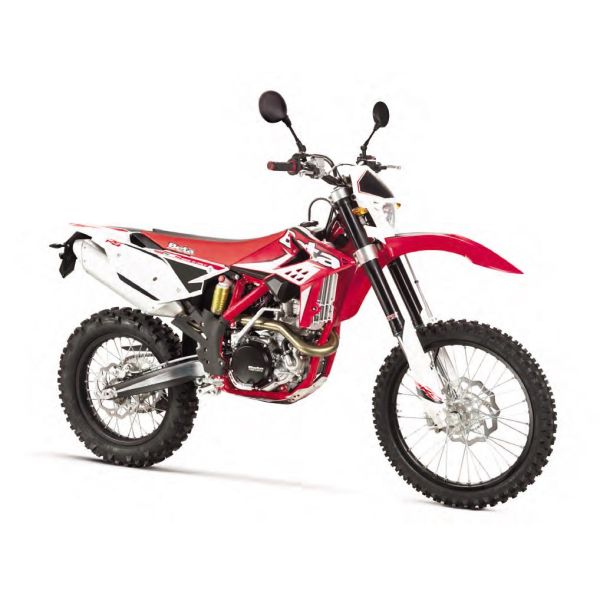

2015 390 RS 4-STROKE
Part Number: B2015390RS
$9,299.00
| Information: |
Engine
| Type: |
Beta-Built single cylinder, 4-valve, 4-stroke liquid cooled, electric start with back up kick starter.
|
| Bore: |
88mm |
| Stroke: |
63.4mm |
| Displacement: |
386cc |
| Compression Ratio |
12.5:1 |
| Ignition: |
DC-CDI with variable ignition timing,Kokusan. 80 watt output at 6000 RPM. |
| Spark Plug: |
NGK LKAR8A-9 |
| Lubrication: |
Twin oil pumps with cartridge oil filter. Separate oil for engine and clutch .8 liter each |
| Carburetor: |
Keihin FCR-MX 39mm |
| Clutch: |
Wet multi-disc |
| Transmission: |
6-speed |
| Final Drive: |
O-ring chain |
Chassis
| Frame: |
Molybdenum steel with double cradle.
Quick Air filter access.
|
| Wheelbase: |
58.7" |
| Seat Height: |
36.8" |
| Ground Clearance: |
12.6" |
| Footrest Height: |
16.2" |
| Steering rake/Offset: |
26.5 degree rake/23mm offset |
| Dry Weight: |
234 lbs. dry |
| Fuel Tank Capacity: |
2 US gallons |
| Front Suspension: |
48 mm Sachs USD fork, adjustable compression and rebound, TFX technology. |
| Rear Suspension: |
Aluminum Body Sachs shock w/adjustable rebound and hi/low speed compression |
| Front Wheel Travel: |
11.4" |
| Rear Wheel Travel: |
11.4" |
| Front Brake: |
260mm rotor |
| Rear Brake: |
240mm rotor |
| Front/Rear Rim: |
21" (Front) 18" (Rear) |
| Front/Rear Tire: |
Michelin Enduro, DOT approved |
| Warranty: |
12 month Limited Warranty |
*Specifications subject to change without notice.
|
| Part Number: |
B2015390RS |
